Description

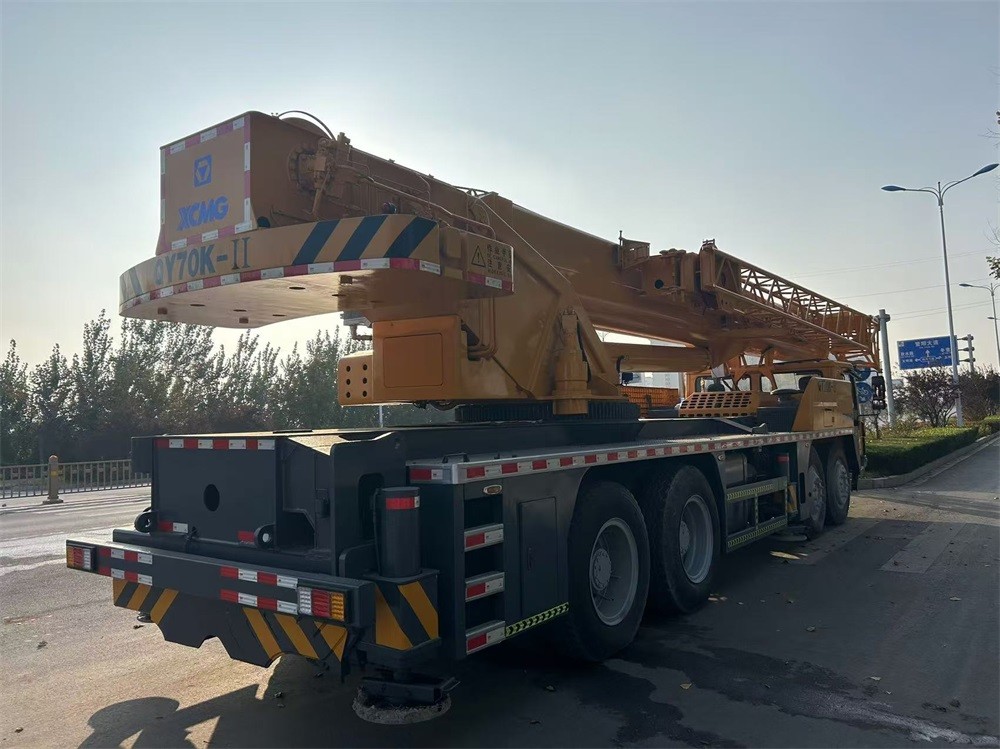

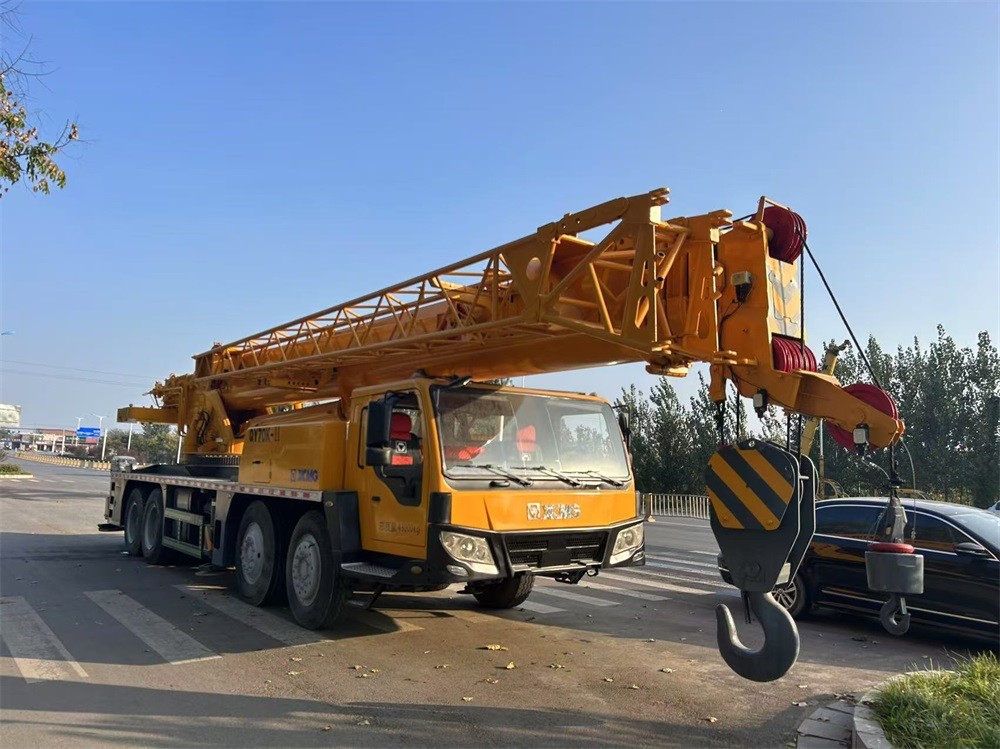

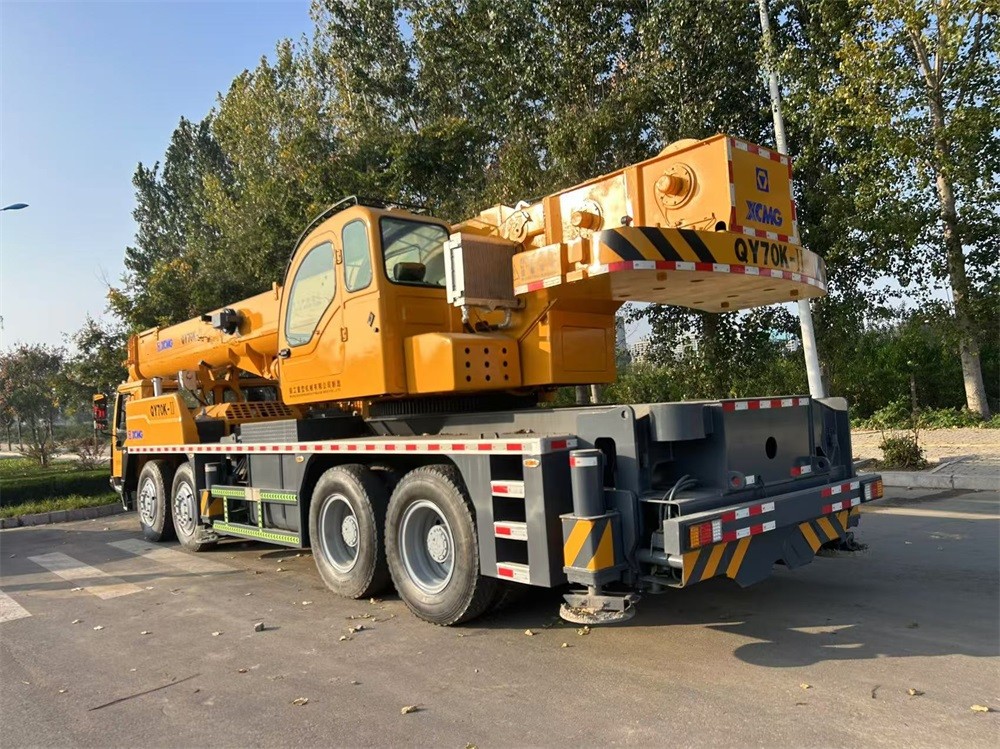

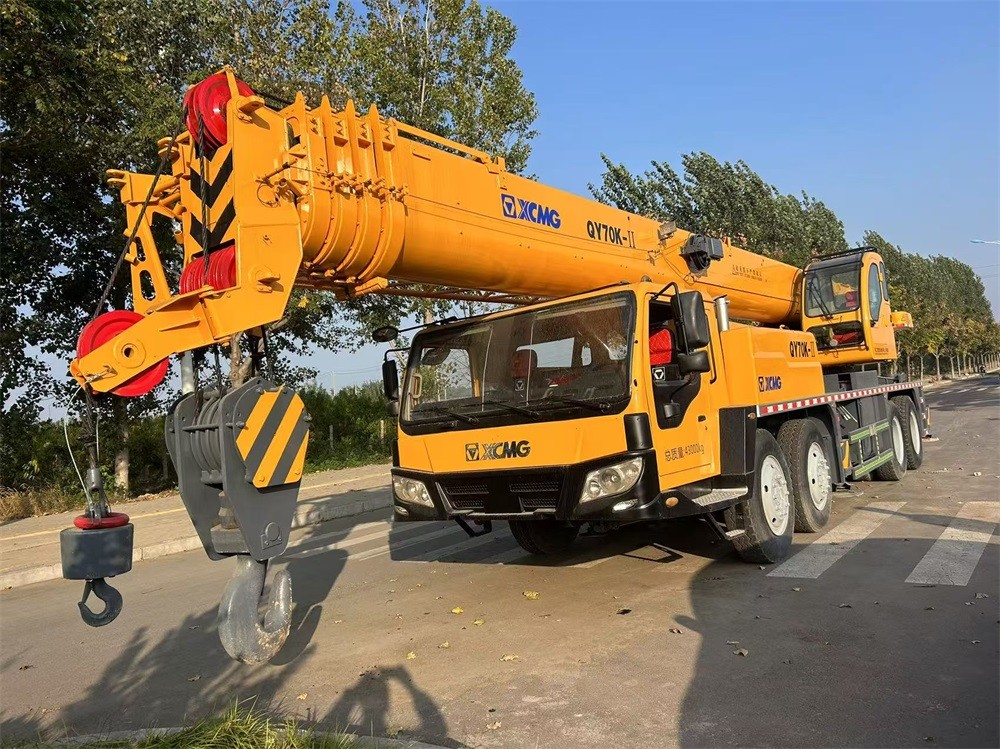

XCMG QY70K-I - Hydraulic Control Crane Parameter Configuration
Lifting capacity
Maximum rated lifting capacity (t) 70
Minimum working range (m) 3
Maximum rated lifting torque (KN. m) 2303
Maximum lifting height - basic arm (m) 11.8
Maximum lifting height - fully extended arm (m) 44.2
Maximum lifting height - basic arm+auxiliary arm (m) 59.4
Maximum lifting capacity (ton) below 45 tons
Maximum lifting capacity (ton) below 45 tons
Crane arm size
Crane arm length - Basic arm (m) 11.6
Crane arm length - fully extended arm (m) 44.5
Crane arm length - basic arm+auxiliary arm (m) 59.5
Homework speed parameter
The maximum lifting speed of the main winch (m/min) is 75 full load and 130 empty load
The maximum lifting speed of the auxiliary winch (m/min) is 98 full load and 108 empty load
Crane arm full extension time (s) 150
Crane boom amplitude time (s) 60
Rotation speed (rpm) 2
engine
Chassis engine model WD615.338/WP10.375/SC9DF375Q3
Rated power (kw/rpm) 276/2200 276/2200 275/2200
Driving parameters
Maximum driving speed (km/h) 80
Minimum turning radius (m) 12
Maximum climbing gradient (%) 40
Minimum ground clearance (mm) 327
Whole machine specifications
Total length of the machine (mm) 13930
Overall width of the machine (mm) 2800
Whole machine height (mm) 3575/3630
Total weight (t) 43
Wheelbase (mm) 1470+4105+1350
Leg span
Lifting capacity
Maximum rated lifting capacity (t) 70
Minimum working range (m) 3
Maximum rated lifting torque (KN. m) 2303
Maximum lifting height - basic arm (m) 11.8
Maximum lifting height - fully extended arm (m) 44.2
Maximum lifting height - basic arm+auxiliary arm (m) 59.4
Maximum lifting capacity (ton) below 45 tons
Maximum lifting capacity (ton) below 45 tons
Crane arm size
Crane arm length - Basic arm (m) 11.6
Crane arm length - fully extended arm (m) 44.5
Crane arm length - basic arm+auxiliary arm (m) 59.5
Homework speed parameter
The maximum lifting speed of the main winch (m/min) is 75 full load and 130 empty load
The maximum lifting speed of the auxiliary winch (m/min) is 98 full load and 108 empty load
Crane arm full extension time (s) 150
Crane boom amplitude time (s) 60
Rotation speed (rpm) 2
engine
Chassis engine model WD615.338/WP10.375/SC9DF375Q3
Rated power (kw/rpm) 276/2200 276/2200 275/2200
Driving parameters
Maximum driving speed (km/h) 80
Minimum turning radius (m) 12
Maximum climbing gradient (%) 40
Minimum ground clearance (mm) 327
Whole machine specifications
Total length of the machine (mm) 13930
Overall width of the machine (mm) 2800
Whole machine height (mm) 3575/3630
Total weight (t) 43
Wheelbase (mm) 1470+4105+1350
Leg span
Vertical x Horizontal (m) 6.1 x 7.3
