Description

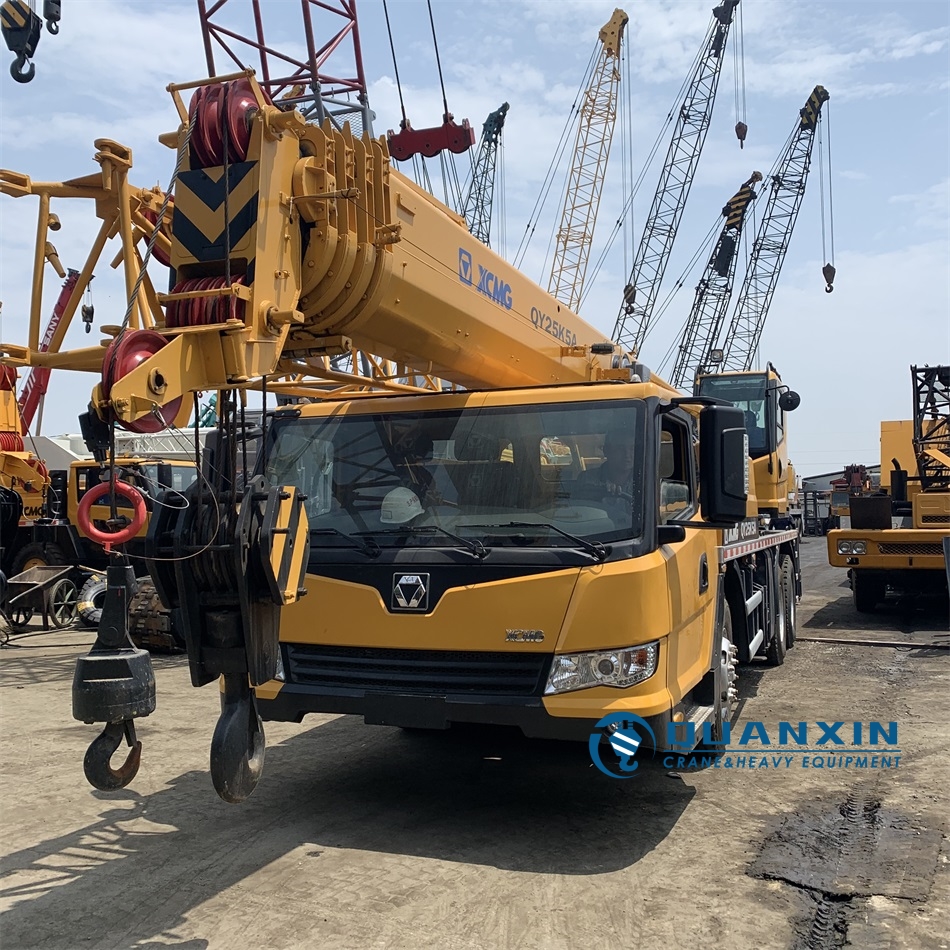

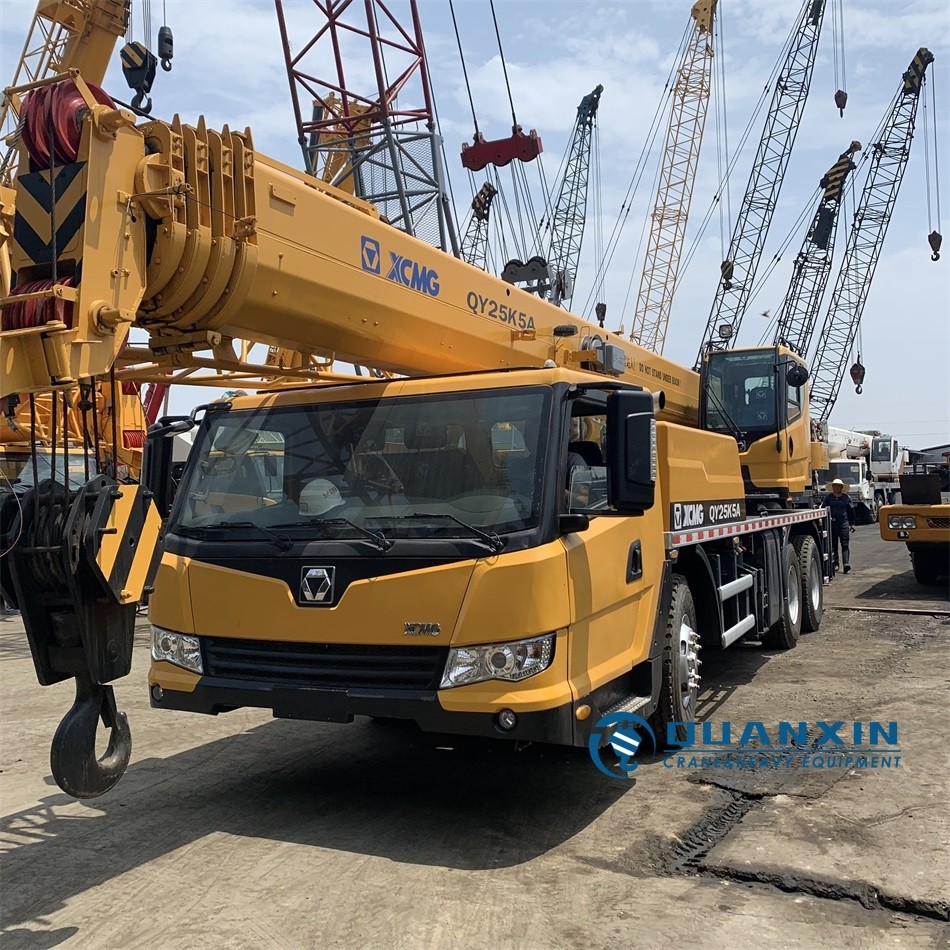

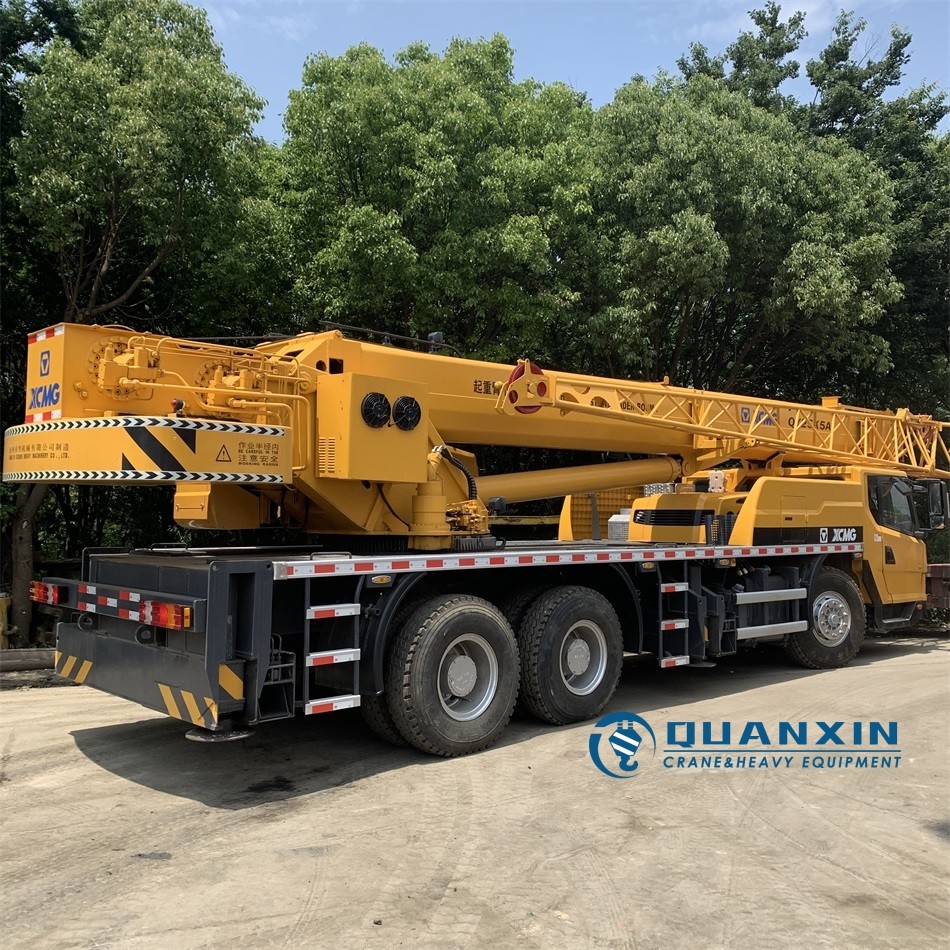

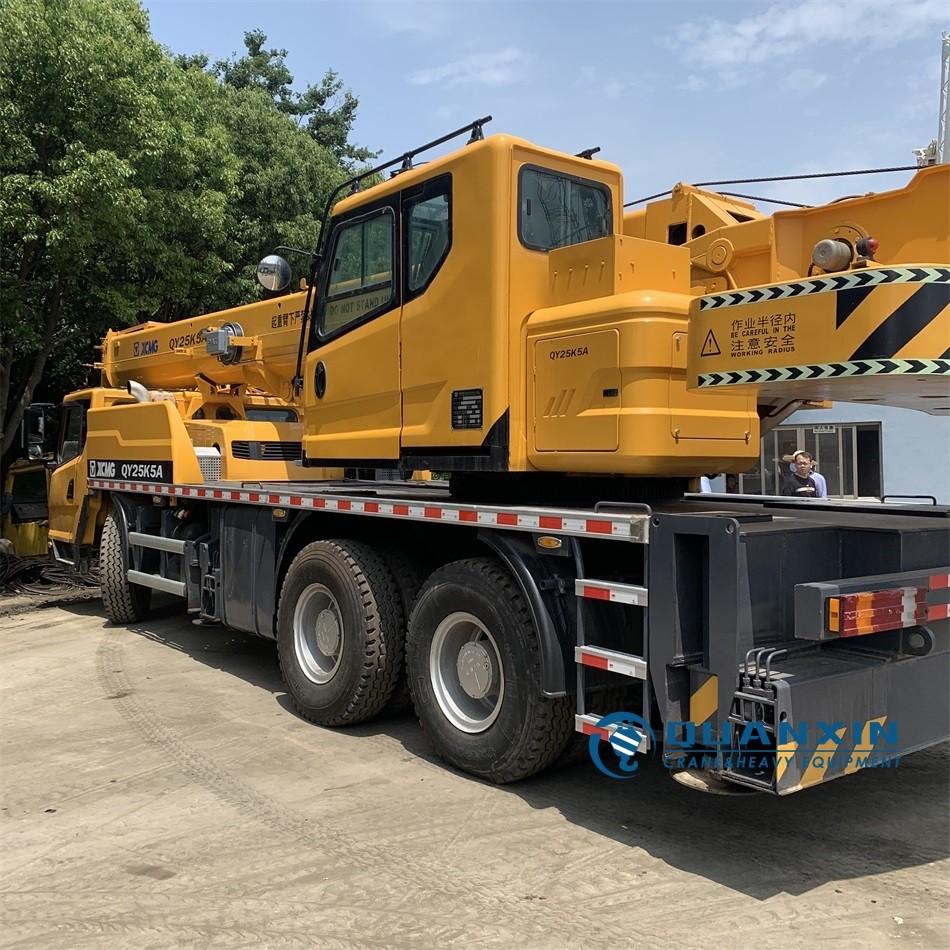

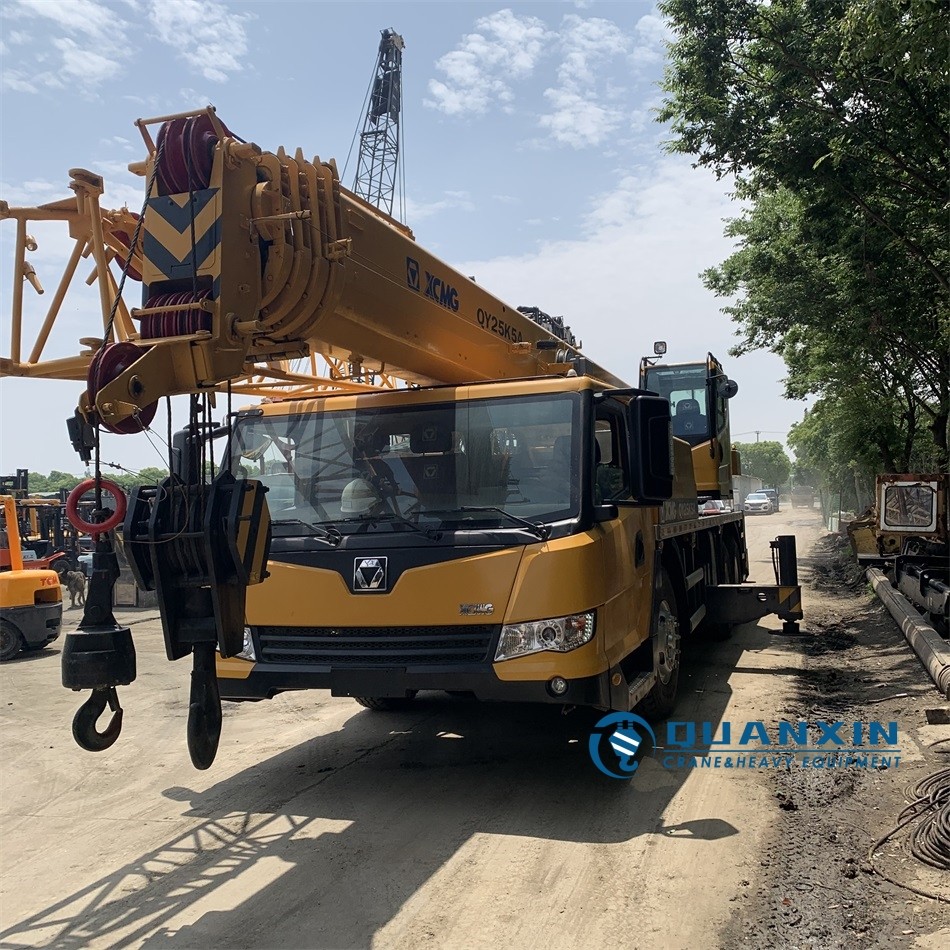

XCMG Official Manufacturer 25 ton Truck Crane for Sale Mobile Crane(Qy25k5a)
Rated Power:213kW 286HP @2,200rpm
Dead Weight in Travel State:32,800kg 72,310lb
Max. Total Rated Lifting Load:25,000kg 55,115lb
Max. Load Moment of Base Boom:1,061kN.m 782,594lbf.ft
QY25K5A truck crane is the product with high reliability inheriting XCMG classical and advanced technology aboutdesign and manufacture truck crane of many years and based on mature technology.
Special truck crane chassis designed and manufactured by our company,all covered working surface and new appearance outline are equipped.Theoperations of craneare very simple,convenient and flexible.It is widely used for lifting operation and installation work in urban renewal, transportation, ports, bridges, oilfield, industrial and mining enterprises, etc.
1. U-shaped cross-section boom has small depth-width ratio, strong bearing capacity, small deformation,strong anti-bending and powerful lifting capacity.The main boom length is 10.6m to 41.0m, the performance of mid-extended boom and fully-extended are also superior.
2. Plug-in boom head effectively increases theboom connect length andreducesboom deformation.Embedded sliders are equipped, which enlarge the contact square and reduce the contact stress of boom.
3. With 9-speed transmission equipped, it has superior travel and grade ability. The max. grade abilityis 40%, max. travel speed is 90km/h.
4.Open type fixed displacement pump and variabledisplacement motor system is adopted.Double pump confluenceis used in main operation, which meets the requirements of speed and reduces the energy consumption and system heat effectively. The load sensitive system that researched anddeveloped by ourselves contributes to smooth operation,high efficiency and energy saving.Particularslewing technology realizes smooth slewing and no jitter. Free fall is adopted in the elevating system,which
|
Category
|
Item
|
Unit
|
Parameter
|
|
Outline Dimensions
|
Overall length
|
mm
|
12680
|
|
Overall width
|
mm
|
2500
|
|
|
Overall height
|
mm
|
3400
|
|
|
Axle base
|
mm
|
4425+1350
|
|
|
Wheel base
|
mm
|
2074/1834/1834
|
|
|
Weight
|
Total vehicle mass in travel configuration
|
kg
|
32865
|
|
Power
|
Model
|
|
SC9DF290Q3
|
|
Rated power
|
kw/(r/min)
|
213/2200
|
|
|
Rated torque
|
N.m/(r/min)
|
1200/1400
|
|
|
Travel Performance
|
Max. travel speed
|
km/h
|
90
|
|
Min. turning diameter
|
m
|
22
|
|
|
Min. ground clearance
|
mm
|
275
|
|
|
Approach angle
|
°
|
11
|
|
|
Departure angle
|
°
|
12
|
|
|
Braking distance(at 30 km/h)
|
m
|
≤10
|
|
|
Max. grade ability
|
%
|
41
|
|
|
Oil consumption per 100km
|
L
|
≤32
|
|
|
Noise
|
Exterior noise level in accelerating
|
dB(A)
|
88
|
|
Noise Level at seated position
|
dB(A)
|
90
|
