Description

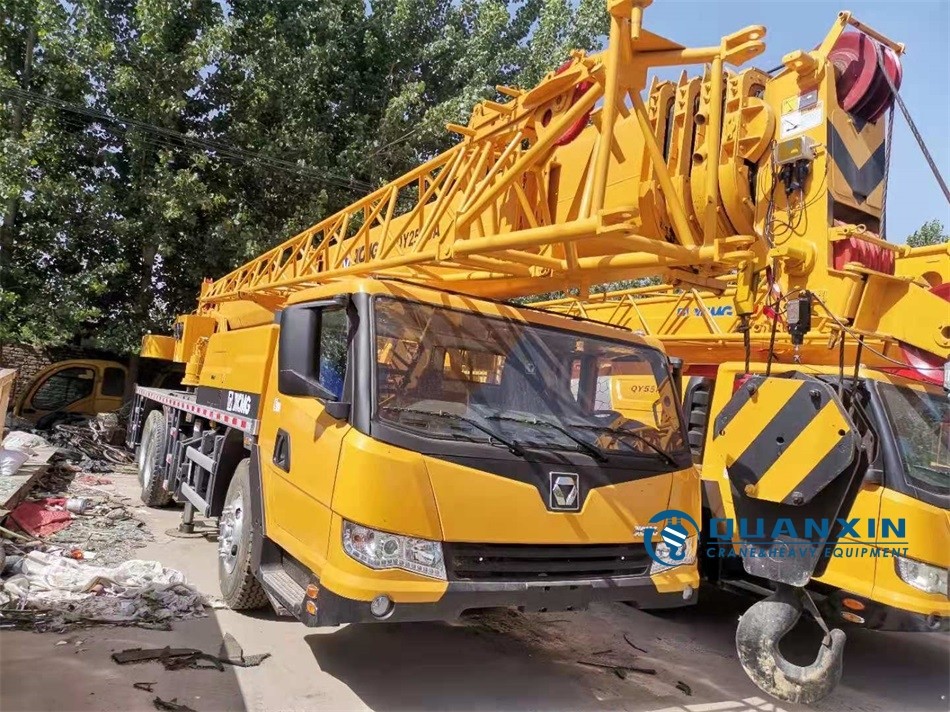

XCMG 25 ton truck crane 5 jib mobile crane QY25k5
Total length:12300mm Total width:2500mm Total height:3350mm Operating Weight:31750Kg Engine power ratings:206/2200 213/2200Kw(r/min) Engine torque ratings:1112/1400 1160/1400N.m(r/min) Max.travel diameter:80Km/h Min. turning diameter:22m Max. grade ability:40% Max. total lifting capacity:25t Max. lifting torque:961Kn.m Basic boom lifting length:10.4m Longest boom lifting length with secondary arm:47.8m Longest boom lifting length:39.5m Elevation duration for secondary boom:68s Elevation duration for fully extended boom:150s Max. rotation speed:2.5r/min • Leading performance: the boom length in full extension is 39.5m, the performance leading in 5%. The grade ability is 40%, which make the machine have good road adaptability. • The unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer and more reliable. • The control system is optimized by 8 patents; lifting, rotation, and luffing are easy and reliable. • Six unique technologies supply the quality assurance, and make the products keep a high value. • The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work. • Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems. • Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer. • The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
Total width:2500mm Total height:3350mm Operating Weight:31750Kg Engine power ratings:206/2200 213/2200Kw(r/min) Engine torque ratings:1112/1400 1160/1400N.m(r/min) Max.travel diameter:80Km/h Min. turning diameter:22m Max. grade ability:40% Max. total lifting capacity:25t Max. lifting torque:961Kn.m Basic boom lifting length:10.4m Longest boom lifting length with secondary arm:47.8m Longest boom lifting length:39.5m Elevation duration for secondary boom:68s Elevation duration for fully extended boom:150s Max. rotation speed:2.5r/min • Leading performance: the boom length in full extension is 39.5m, the performance leading in 5%. The grade ability is 40%, which make the machine have good road adaptability. • The unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer and more reliable. • The control system is optimized by 8 patents; lifting, rotation, and luffing are easy and reliable. • Six unique technologies supply the quality assurance, and make the products keep a high value. • The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work. • Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems. • Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer. • The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
